Type 90 Miniature Precision Air Pressure Regulator

Compact, lightweight, precise regulation

This pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact, lightweight housing. A force balanced pilot control maintains output pressure to within 0.05 psig (3.44 millibar) with minimal drift over time. The Type 90 is ideal for applications that require exact pressure control and substantial flow capacity under variable operating conditions and limited space.

Type 100 Precision Air Pressure Regulator

Dependable, stable and highly precise precision regulation

The Type-100 is a high precision, multi-stage pressure regulator. This pressure controller provides the highest level of regulation accuracy and repeatability available. The Type-100 is ideal for applications that call for the utmost of control and maximum stability under variable operating conditions. A stainless steel measuring capsule is used as a sensing element to activate the high gain servo balanced control mechanism in which the main valve is controlled by a pilot valve.This allows for greater accuracy and eliminates many of the problems associated with conventional regulators using range springs and diaphragms.

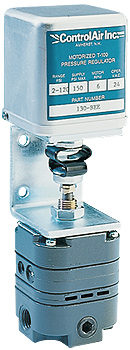

T100M Motorized Precision Air Pressure Regulator

Precise pneumatic control by use of an electrical signal

The ControlAir Type-100M Motorized Air Pressure Regulator is designed to provide precise pneumatic control by use of an electrical signal. This highly accurate device is well suited for pneumatic control of a system from a remote location. Utilizing two tandem synchronous AC Motors, each having it's own set of leads, but operating through a single output shaft, direction of rotation is dependant of which set of leads power is applied to. The motor is coupled to ControlAir's Type-100, which is a high precision, multi-stage air pressure regulator with low power requirements.

OPERATION:

When no electrical power is supplied the regulator maintains a precise set point despite variable supply pressure conditions and flow rates. When power is applied to the motor the regulator pressure output changes intermittently.

Type 300 Instrument Air Filter Regulator Series

Clean, accurate air pressure under harsh conditions

The Type-300 Instrument Air Filter Regulator is designed to provide clean, accurate air pressure to instruments, valves, and other automatic control equipment. This filter regulator has been proven to provide accurate operating characteristics under variable conditions. Durable materials and a standard epoxy paint finish provide long lasting corrosion resistance in harsh industrial environments. The Type-300 is a quality unit that is ideal as an economical alternative for control of process applications.

The Type-310 NACE Filter Regulator incorporates all of the operating features of the Type-300 filter regulator, but is constructed of materials that meet NACE specification #MR-01-75 for sulfide stress cracking. Designed specifically for corrosive sour gas environments, the Type-310 NACE is ideal for oil field applications.

The Type-320 Filter unit is a 40-micron depth filter that removes dirt, moisture and other particles from air and gas lines. Robustly constructed of die-cast aluminum with a baked epoxy finish, this unit stands up in corrosive operating conditions. This filter is an economical alternative for air supply line applications that don't require a pressure reducing regulator.

Type 330/340 Instrument Air Filter Regulator & Air Regulator Series

Field rugged airset in a down-sized package

The Type 330/340 Series of Instrument Air Filter Regulators and Air Regulators are designed to provide clean, accurate air pressure to instruments, valves, and other automatic control equipment in a lightweight, compact housing. These quality instruments are constructed of durable materials that will provide long lasting corrosion resistance in harsh industrial environments.

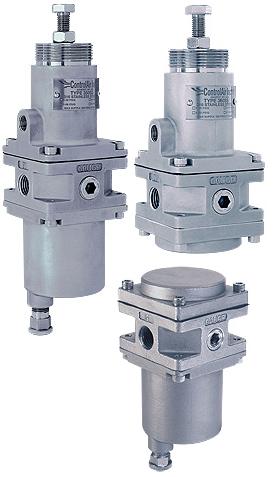

Type 350/360/370SS Series Stainless Steel Regulators

Type 350SS Stainless Steel Filter Regulator
Type 360SS Stainless Steel Regulator
Type 370SS Stainless Steel Filter

The Type 350/360/370SS series of stainless steel regulators, filter regulators and filters are designed to stand up to the harshest environments while providing highly accurate pressure regulation. Proven 316 stainless steel housing and filter assemblies along with fluorocarbon diaphragm construction make the 350/360/370SS compatible with sour gas and adaptable to off shore environments. This quality instrument is economical to buy as well as operate, and provides extremely stable and repeatable control of gas pressure. Oversized valving helps the unit achieve high flow rates with minimal pressure drop.

Type 400 General Service Regulator

Low cost, high quality, corrosion resistant and compact pressure regulation

The Control Air Type 400 is a general purpose regulator designed to provide reliable performance under variable operating conditions. This quality unit is ideal as an economical alternative for control of industrial process applications. The regulation characteristics of the Type 400 have been proven to be superior to comparable competitive units. Durable materials and corrosion resistant construction provide reliable operation in harsh industrial environments.

Type 700 High Flow Pressure Regulator

High flow capacity and accurate pressure control

The Type 700 is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilizing a rolling diaphragm insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity

Type 700 Precision Back Pressure Regulator

Reliable protection against over pressurization

The Type-700BP Back Pressure Regulator is a high flow, highly accurate pneumatic relief valve with an adjustable set point. It's primary function is to provide protection against over pressurization in the downstream portion of a pneumatic system. This precision unit is capable of handling flows up to 50 SCFM. A rolling diaphragm provides the sensitivity that causes the Type-700BP to vent to atmosphere in response to the slightest upstream changes.

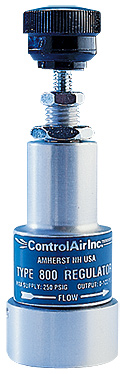

Type 800 Subminiature Precision Pressure Regulator

Precise air pressure regulation for application where space is limited

The Type-800 is a compact air regulator that supplies precise air pressure control for applications where space is limited. This high quality unit, available in five pressure ranges up to 100 psig (7 BAR), offers the same dependable performance as ControlAir's larger precision air pressure regulators. An oversized supply valve provides the Type 800 with significantly higher flow capacities than competitive units of similar size. The Type 800 is also available with a variety of convenient port sizes and mounting options. Corrosion resistant materials, lightweight construction and low cost, combine to make the Type 800 ideal for any application where space is at a premium.

Type 850/860 Miniature General Purpose Regulator

Compact, low cost, high performance pressure regulation

The ControlAir Type-850 and Type-860 are compact units that provide low-cost, high performance pressure regulation of compressed air (Type 850 and Type 860) or water (Type 860). Designed specifically for the OEM market, these units are ideal for compressed air or water pressure control applications. The highly sensitive diaphragm-operated design delivers accurate downstream pressure by eliminating the problems caused by sticking in piston designs utilized by competitors. A molded rubber supply valve provides accurate regulation and prevents leakage.

Type 3500 High Pressure Regulator

Accurate and reliable first cut pressure regulator

The Type 3500 provides a low cost, dependable regulator to reduce inlet pressures from as high as 6000 psig (413 BAR) down to working pressures ranging between 0 and 225 psig (15.5 BAR). This first cut regulator is available in three separate spring ranges. These versatile devices can be used as pilot supply or pressure loading regulators where a high-pressure operating valve must be controlled by a gas regulator pilot. The Type 3500 is designed for use with noncorrosive gases.
